High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine

Brand Name : CHBEST

Model Number : XY264-400

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Price : 9000-13500

Supply Ability : 20 sets/month

Delivery Time : 20-30 days

Packaging Details : plastic film for naked machine

Product name : The snap lock standing seam metal roofing panel machine popular in Ghana

Roller material : 45#steel

Machine power : 3kw

Driven system : Chain or gear box

Cutting type : Hydraulic

Warranty : 2 years

Life time : more than 10 years

Contact Now

The snap lock standing seam metal roofing panel machine popular in Ghana

Meridian self clip lock standing seam metal roof sheet is an economical, snap-together, conceald fastener roofing panel, Meridian roof is ideal for residential and light commercial applications.


Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set

Working flow


Decoiler------feeding------roll forming------cut to length-----output table

High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine

High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine

Decoiler

Type Manual type(standard) Hydraulic type(option)
Photo High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm

roll forming

Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)
High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine
Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming

Forming stations 16 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ70mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 3kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting

Type

bearing sliding type
High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine
Blade material Cr12mov quenching and grinding
Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker

Type

Manual
High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine


Auto(option)
High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine
Length 1.5m-2m 6m or 12m

PLC

Main item Parameter detail
PLC

Delta(standard) or according to your request
High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming MachineHigh Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine
Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

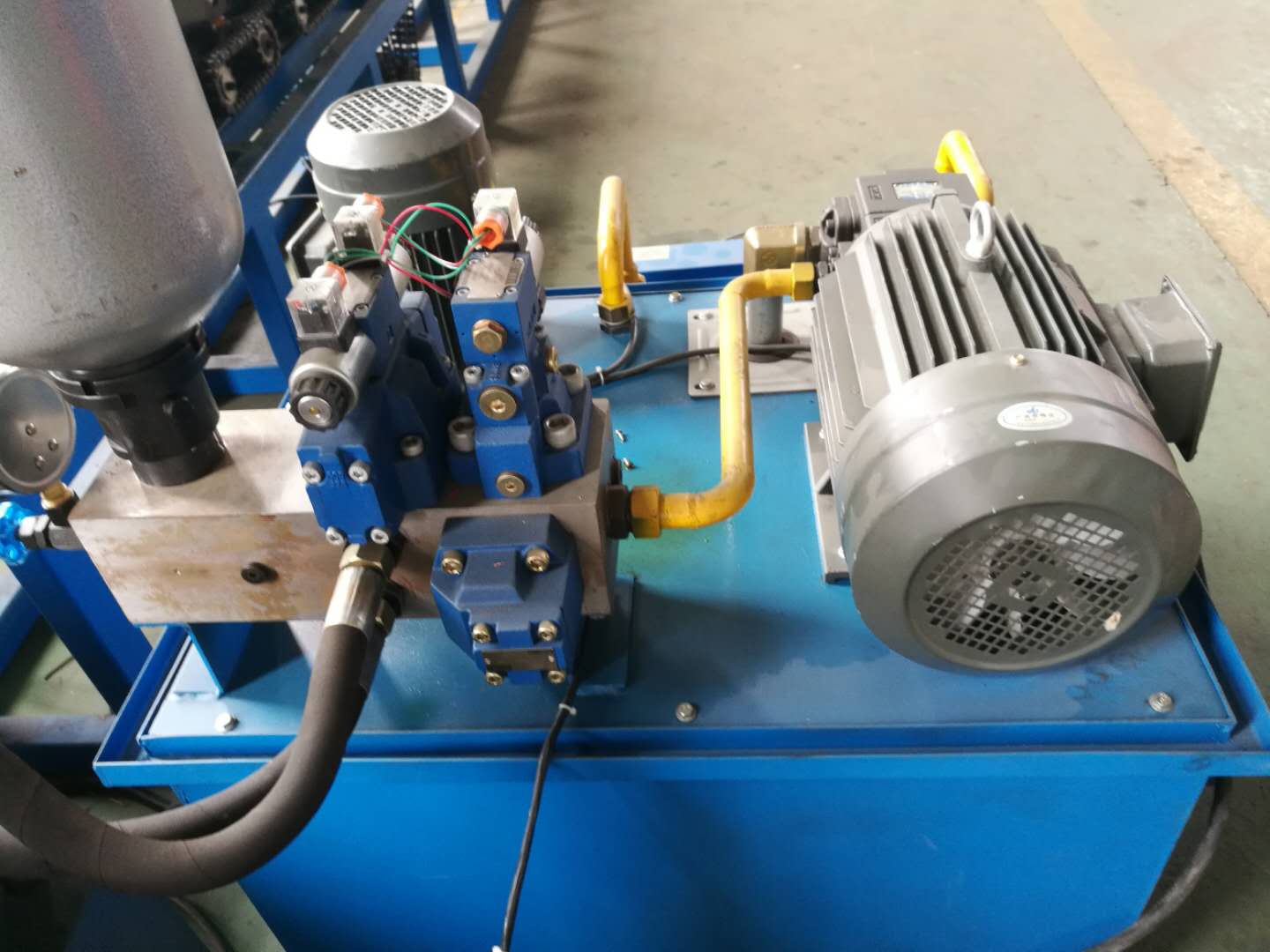

Hydraulic pump

Main Item Parameter detail
Motor

3kw China brand or according to your request
High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine
Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan
High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine


Machine Photo

High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine

High Power Corrugated Roofing Sheets Making Machines Ceiling Roll Forming Machine
