Metal Roof Tile Ridge Cap Roll Former For Construction Cold Roll Forming Machine

Name: Metal Roof Tile Ridge Cap Roll Former For Construction Cold Roll Forming Machine
Brand: CHBEST
Price: 1 USD

China Metal Roof Tile Ridge Cap Roll Former For Construction Cold Roll Forming Machine factory

Brand Name : CHBEST

Model Number : XY350

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Supply Ability : 20 sets/month

Delivery Time : 20-30 days

Packaging Details : plastic film for naked machine

Product name : Metal Roof Tile Ridge Cap Roll Forming Machine for construction

Machine speed : 8-12m/min

Machine power : 3kw+3kw

Lifetime : more than 10 years

Warranty : 18month

Control system : PLC

Contact Now

Metal Roof Tile Ridge Cap Roll Forming Machine for construction

advantages

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

Machine components

No.	Name	Qty
1.	De-coiler	1 Set
2.	Roll Forming Machine	1 Set
3.	Hydraulic Pressing and Cutting Device	1 Set
4.	PLC Control Box	1 Set
5.	Hydraulic Pump	1 Set
6.	Output table	1 Set

Parameter

Material

Material Thickness(&):0.4-0.7mm

Applicable material:Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils,yield strength 245Mpa or 550Mpa

Machine Components

1)Manual Decoiler: one set

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton

2) Cold Rolling Mills:

Rollers manufactured from bearing steel GCr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ;

Motor Driving,Gear chain transmission, 18 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling)

Main Motor=4KW , Frequency speed control

Forming speed approx.12-15m/min

3)Hydraulic Cutting device

hydraulic motor: 3.7KW, Hydraulic pressure range: 0-16Mpa

Cutting tool material: Cr12, Heat treatment

4)PLC Control System(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss ,Encoder brand: Japan Koyo)

Control the quantity and cutting length automatically

Combined with: PLC, Inverter, Touch Screen, Encoder, etc

Cut-to-length tolerance≤±1mm

Control Voltage 24V

5) Exit Rack Un-powered, three units

Working conditions
1.working size	15m x 2m x 4m
2.Power supply	6kw
3.Frequency	50-60HZ
4.Wires/cables	4-6mm²(length according to workshop)
5. Labor cost	2 workers
6. Tools	Spanners and screwdriver
7.Lift device	3-5t forklift or crane

Terms

Payment: 30% T/T prepaid and balance should be paid before shipping.
Delivery time:40 days after receiving advance payment.
Guarantee period: 12months
Installation and training:if buyer visit our factory and check the machine, we will teach you how to install and use the machine.
And also train your workers/technician face to face.
We will send you video to teach you to install and operate.
If you need our technician abroad to your country, please arrange board and lodging and other necessary things.

Photos

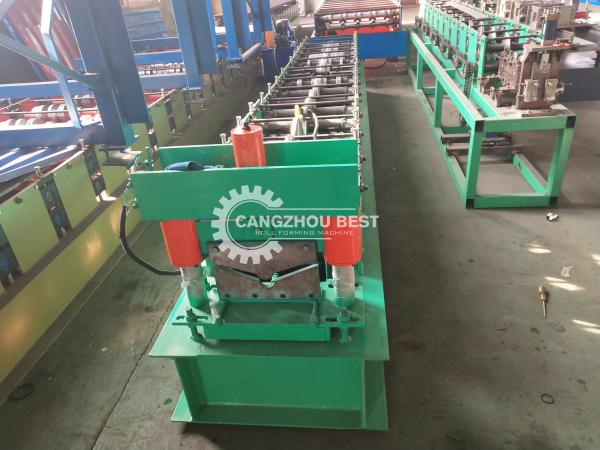

Metal Roof Tile Ridge Cap Roll Former For Construction Cold Roll Forming Machine
