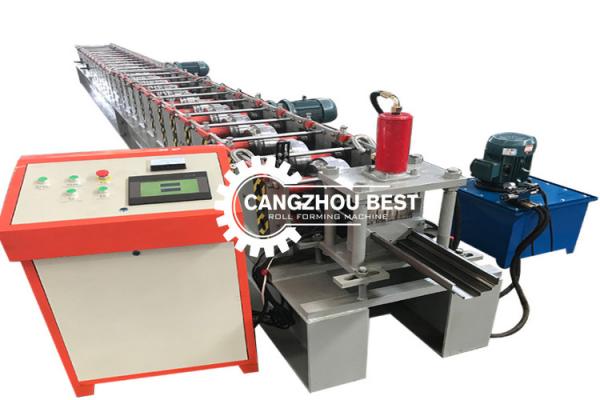

1.2mm 8m/Min Touchscreen Metal Door Frame Roll Forming Machine

  • 1
  • 2
  • 3

Brand Name : BEST

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : USD$20000---30000

Payment Terms : L/C, T/T

Supply Ability : 20 sets/month

Delivery Time : 30 work days

Type : Tile Forming Machine

Tile Type : Steel, Glazed Steel

Production Capacity : 8-12m/min

Condition : New

Voltage : 380V 50Hz 3phases

Certificatio : ISO

Contact Now

Advantages

Forming structure composition
The machine is mainly composed of passive loading rack, leveling device, punching device, rear cutting device, hydraulic station, computer control system, etc.
Easy operation
The finished product of one-key type-changing c-shaped steel machine has good tensile, bending and compression performance. Good straightness, high degree of automation, quick and convenient installation
Good stability
Such as the roof load-bearing load and wall support of factory buildings, warehouses, hangars, exhibition halls, theaters, stadiums, market flower sheds
Main components
It can produce cold-formed steels with a variety of sections and different materials with uniform wall thickness, but complex cross-sectional shapes, which are difficult to produce by general hot rolling methods.


1.2mm 8m/Min Touchscreen Metal Door Frame Roll Forming Machine

(1)The general machine parameter
Suitable roll forming materialColor steel sheet or galvanized steel sheet
Thickness0.5-1.2mm
Effective width300/400±3mm
Feeding width398/498mm
Frame designWall-plate-frame-design /Strong-stand-frame-design
Roll stages20 stages
Material of forming roller40Cr, CNC lathes, Hard Chrome Coated
Shafts DiameterΦ75mm
Main motor power7.5KW, frequency speed control
Max. Line speed of roll former 12m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power4 KW
Material of cutting bladeCr12, heat treatment
Electric Standard380V /50Hz/3PH or as the customer's requirements
Machine Dimensions 8750mm×1380mm×1400mm
Major Color of Machine PaintedRAL 5015 (Blue) or as per customer’s requirements
(2) PLC Control system
PLCSiemens brand (ABB brand is available if required)
Touch ScreenSiemens brand (ABB brand is available if required)
InverterSchneider brand (ABB brand is available if required)
EncoderOmron brand
(3)Product rack
Descriptionun-powered, 3 units

(4)Option:
CE certificate
Pl refer to the attached pictures for details

(5) Service after sell

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
(1) If installation is needed, Liming (the seller) will dispatch technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.
a) Position the machine in the buyer’s factory.
b) Prepare necessary electric wiring.
c) Prepare material of trial running.
d) Provide labors for assistance and installation during installation.
e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller’s technician will go smoothly.
