Steel Roofing Sheet Ridge Cap Roll Forming Machine/Roll Top Roof Tile Forming Machine
Specific
| Name | Automatic Steel Cutting Machine Galvanized Ridge Cap Zinc Roofing Sheet Profile Roll Forming Machine |
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 0.3-0.8 mm |
| Coil Width Range | According to your actual drawing. |
| Electric Power | 380V, 50 Hz, 3 phase or according to your need. |
| Dimension | About 6.4*0.6*1.1m(L*W*H), as per the drawing |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet | You can set the length according to your need. It is controlled by PLC lengt of accuracy: ±1mm. |
Specifications
1. DECOILER
(1) Max. Width: 1500 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 9roller stations
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw
(9)Driven type: 0.6＂Chain
(10)Speed:about 3m/min

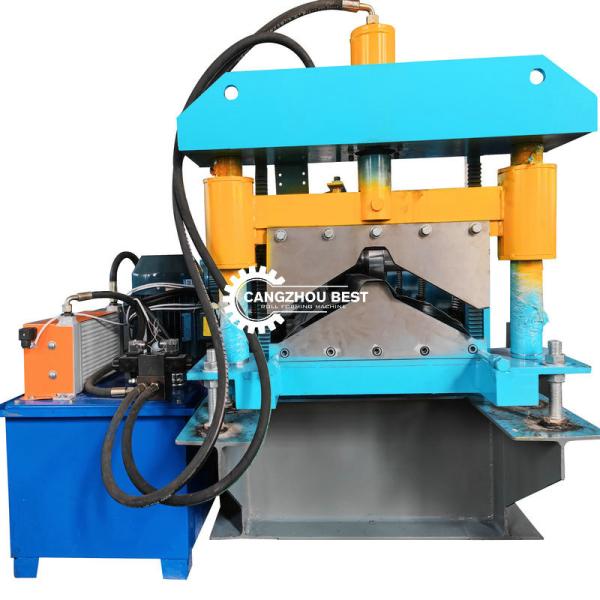

3. PRESSING AND CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 5.5kW
(5) Press tool material: Cr 12 steel after heat-treated
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase
(it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Motor power: 5.5 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand
(4)Cooling fan
6. PRODUCTION SUPPORT TABLE
(1) No power type
(2)Length: 2m
Loading and Packing:
Standard Export Packing.
1.One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Our service:
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary per day.
During warranty: parts are free but buyer pay for the shipping fee
Our company:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
FAQ:
1. Q: Are you a manufacturer?
A:Yes, we are manufacture.
2. Q: How should I do if I would like to order my machine
A: Send me your design drawing if you have.
Or tell me your design idea. I arrange my engineer to drawing it for your confirmation.
3. Q: What details of the machine you should get from me.
A: I will confirm all details with you, such as the voltage in your city.
4. Q: I am new in this field. How could I understand the machine very well
A: Why not contact me whatsapp: 0086 18045013499. I promise you that you will be professional after you get from me. It is true thing.
5. Q: I receive a lot of quotations, they are big range, How could i choose?
A: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.
6. Q: Can you give me one suggestion for ordering the machine.
A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.
7. Q: I have not whatsapp and skype, how could I contact with you
A: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.
8. Q: What do you think what is the most important for roll forming machine
A: Drawing ! Drawing ! Drawing
9. Q: Can you use other brand of spare parts for me if i want.
A: No problem if you want to pay the money.
