C8 1000mm Roofing Sheet Roll Forming Machine Steel Metal Making High Effective

Name: C8 1000mm Roofing Sheet Roll Forming Machine Steel Metal Making High Effective
Brand: CHBEST
Price: 6500 USD

China C8 1000mm Roofing Sheet Roll Forming Machine Steel Metal Making High Effective factory

Brand Name : CHBEST

Model Number : YX-850

Certification : CE BV SGS

Place of Origin : China

MOQ : 1set/month

Price : USD6500-25500/set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20sets/month

Delivery Time : 5-60days

Packaging Details : 20GP/40GP container

Name : C8 Steel Metal Roofing Sheet Roll Forming Making Machine High Effective

Roller material : Hydraulic cutting

Feeding width : 1000mm

Cutting blade material : Cr12

Material of rollers : 45#steel Forge

Shaft material : 45# steel, quenched

Effective width : 850mm

Marketing Type : Hot Product 2021

Speed : 8-12m/min

Side panel : 20mm

Contact Now

C8 Steel Metal Roofing Sheet Roll Forming Making Machine High Effective

1. Advantage:

Overseas engineers can perform installation, instruction, commissioning, and maintenance.

The machine is controlled by a computer controller program, which can be set in advance to cut the
 meter, length, quantity and punching position. The program will perform cut-to-length cutting by itself, saving manpower! With
 multi-languages, it is convenient for users in various countries, simple and easy to operate, and can input multiple sets of
 different work data, saving time, labor and labor! , High throughput!

The finished product of Profile Use Metal Steel Tile Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

2. Technical Parameters:

Manual decoiler

Inner diameter:450-550mm

Outer diameter:1500mm

Max Coil width:1500mm

Capacity: 5.0T

Decoiler dimension:1.5*1.5*1.5m

Decoiler weight:355KGS

Quantity: 1set

Usage: It is used to support the steel coil and uncoil

it in a turntable way. Passive uncoil pulled by roll forming system

Computer Control Cabinet

Programmable setting of profile length and quantity,Computed mode has two modes: automatic and manual.The system is easy to operate and use
Language:English, Chinese,Spanish and Russian

Hydraulic System :Oil pump

Power:4kw
Hydraulic oil: 46# hydraulic oil
Working pressure: 12-16Mpa adjustable
Solenoid valve:1 groups
Color:Blue (or as customer's request).

Product Stand

Main framework adopts welded steel and supported roller,used for transmit and collect the finished products.

3. Machine Details:

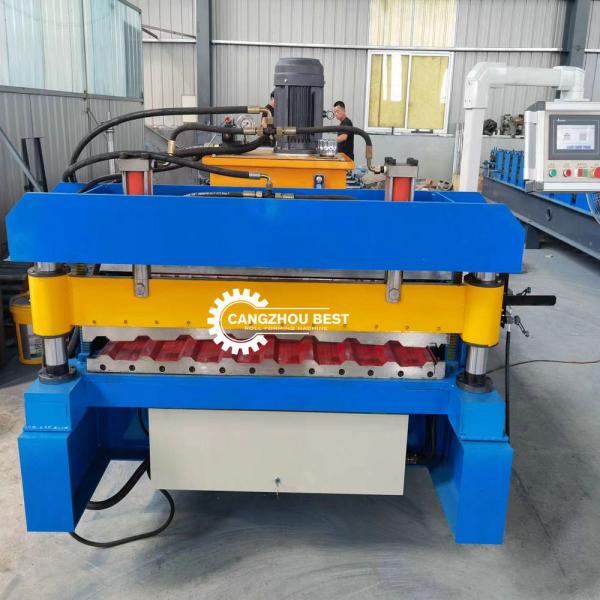

Fully automatic tile Roofing Roll Forming Machine is composed of feeding, forming and cutting after forming. The products produced by tile press have smooth and beautiful appearance, uniform lacquer pattern, high strength and durability. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, locomotive garages, hangars, gymnasiums, exhibition halls, cinemas and theatres. Its components include: whole machine, PLC computer control system, hydraulic pump station system, automatic post-shearing system.

4. Main Features

1) Roofing Roll Forming Machine adopts high level automatic control software to realize production information management.
2) The automation control system of the whole unit adopts a highly integrated network, which makes the performance of the automation system superior.
3) Color steel tile equipment also has the advantages of operation, maintenance, maintenance and mechanical debugging, mold replacement is easy.

5. Guarantee:

1	we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket, visa, accommodations, food and transportation in your country.
2	You can send your men to our factory. we will teach them how to operate the machine without training charges.
3	Actually, there's another cheap and easy way to choose. Every machine leaves our factory with one book of operation manual. You can read through the manual first, and get familiar with the machine. Then we can get a video call, and teach you on-line on how to operate the machine.
4	Apart from the above training course, we also provide 18 MONTH warranty for all the easily broken part of the machine for free and whole-life technical service support.

6. We want to know following information.

1), What is the exact profile you want to produce?

2), What kind of material you will use, such as steel or aluminium, max coil weight, thickness?

3), What kind of decoiler and stacker you need?

Pls contact us as below informaiton,hope can cooperate,thanks advance

We can produce according to your requirements.
