Hydraulic Roll Forming Machine Galvanized Steel Profile Box Beam Multi Size Making

Name: Hydraulic Roll Forming Machine Galvanized Steel Profile Box Beam Multi Size Making
Brand: CHBEST
Price: 1 USD

Brand Name : CHBEST

Model Number : XY80-120

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Supply Ability : 10sets/month

Delivery Time : 50-60 days

Packaging Details : plastic film for naked machine

Product name : Hydraulic Galvanized Steel Profile Box Beam Multi Size Making Roll Forming Machine

Machine speed : 8-10m/min

Driven system : Chain or gear box

Control system : PLC

Cutting type : Hydraulic

Warranty : 2 years

Life time : more than 10 years

Contact Now

Hydraulic Galvanized Steel Profile Box Beam Multi Size Making Roll Forming Machine

Working flow
Decoiler-----feeding----- leveling ------roll forming -----cutting----output table-------seaming machine

Machine Component

De-coiler-------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Hydraulic punching device---------------------1set
Production support table-----------------------1set
Seam machine------------------------------------1set

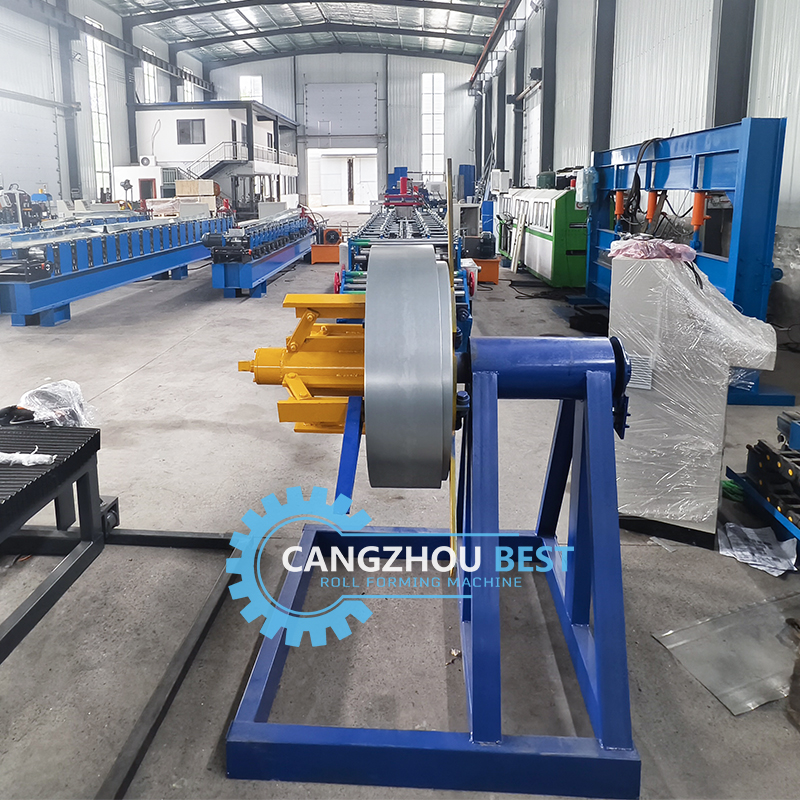

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	600mm	800mm
Capacity	5000kgs	5000kgs-15000kgs
Inner diameter	450-550mm	450-550mm
Outter dimater	1500mm	1800mm

Hydraulic Roll Forming Machine Galvanized Steel Profile Box Beam Multi Size Making

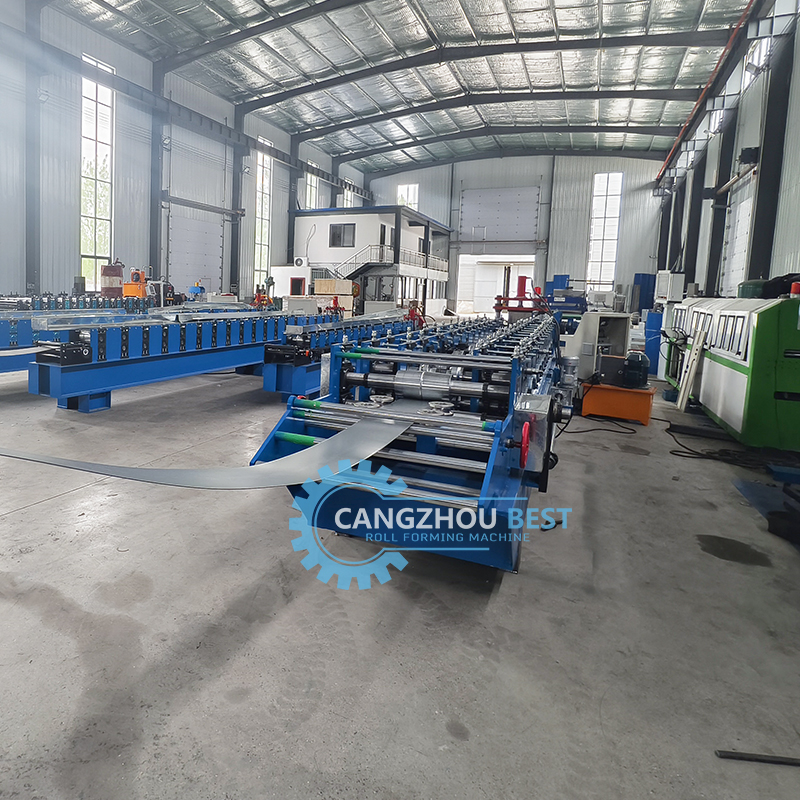

ROLL FORMING MACHINE
Material Thickness: 1.5-2.0 mm
Rollers: 13Groups
Material for Rollers: Gcr15 steel polished and coated with chrome HRC55-60°
Material for shaft: high grade No.45 steel after treatment
Diameter of shaft: 80mm
Frame panel thickness: 20mm
Bottom frame: 36# H-section steel
Motor Power: 11 kw
Driven type: 2＂Chain

Cutting device

Type	Mould cutting
Blade material	Cr12mov quenching and grinding
Frame processing	the whole bottom frame is grinding for high-precision
Blade processing	wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
Working	Hydraulic type

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

Hydraulic pump

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan

Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Machine Photos
