Upright System Bracket C Channel Making Roll Forming Machine Customzied

Brand Name : CHBEST

Model Number : XY-30

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Price : USD 15,000/ SET

Supply Ability : 5sets/ month

Delivery Time : 50-60 days

Packaging Details : plastic film for naked machine

Product name : Upright System Bracket C Channel Making Roll Forming Machine Customzied Machine

Material thickness : 1-2.5mm

Driven system : Chain or gear box

Control system : PLC

Warranty : 2 years

Life time : more than 10 years

Color : As customer's request

Power : 11-15kw

Contact Now

Upright System Bracket C Channel Making Roll Forming Machine Customzied Machine



Machine Component

No. Name Qty
1 Decoiler 1set
2 Roll forming machine 1set
3 Cutting device 1set
4 Control box 1set
5 Hydraulic oil pump 1set
6 Output table 1set



Decoiler

Inner Diameter: Φ500 – Φ550 mm
Out Diameter: 500 mm
Max. Loading Capacity: 5000 kg
Type: manual


roll forming machine
Rolled Material: Cold Rolled Steel Sheet
Material Thickness: 1-2mm
Rollers: 14Groups
Material for Rollers: GCr15 steel after treatment
Hardness for Heat Treatment: HRC55 – 60
Frame panel thickness: 20mm
Bottom frame: 350 H-section steel
Motor Power:7.5 kw
Driven type: Chain


PLC
Type: PLC Frequency Control System with double touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: Chinese and English
Voltage:380v 50hz 3phases(as customer requirement)

Hydraulic pump
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand

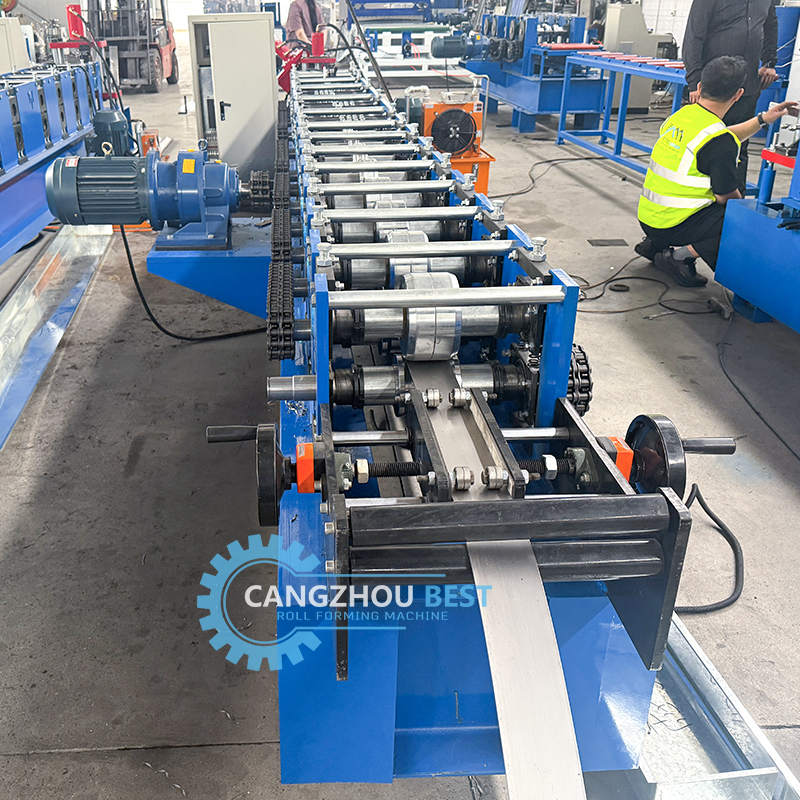

Machine Photos
Upright System Bracket C Channel Making Roll Forming Machine Customzied

Upright System Bracket C Channel Making Roll Forming Machine Customzied
