Upright System Custozimed Z Shape Contact Part Roll Forming Machine
Working flow
Decoiler-----feeding ------roll forming --------cutting----output table
Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 se |
1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs
2. ROLL FORMING MACHINE
(1) Material Thickness: 1.2-2.0mm PPGI and GI
(2) NO. of roller Stations:18groups
(3) Material for Rollers: Cr 12 steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°
(5) Diameter of shaft: 80mm
(6) Frame panel: 20mm
(7) Bottom frame:steel tube welding
(8) Motor Power:7.5kw
(9)Driven type: chain
(10)Speed: 8-12m//min
3 CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC58 – 62°
(3)Cut-Off Type: Flying Cutter, cutting with non stop
(4)Motor for Hydraulic Stand: 3kw
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase
(it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand
(3)Cooling fan
6. PRODUCTION SUPPORT TABLE
(1) No power type
(2)Length: 2m
Product Tags:
|
|

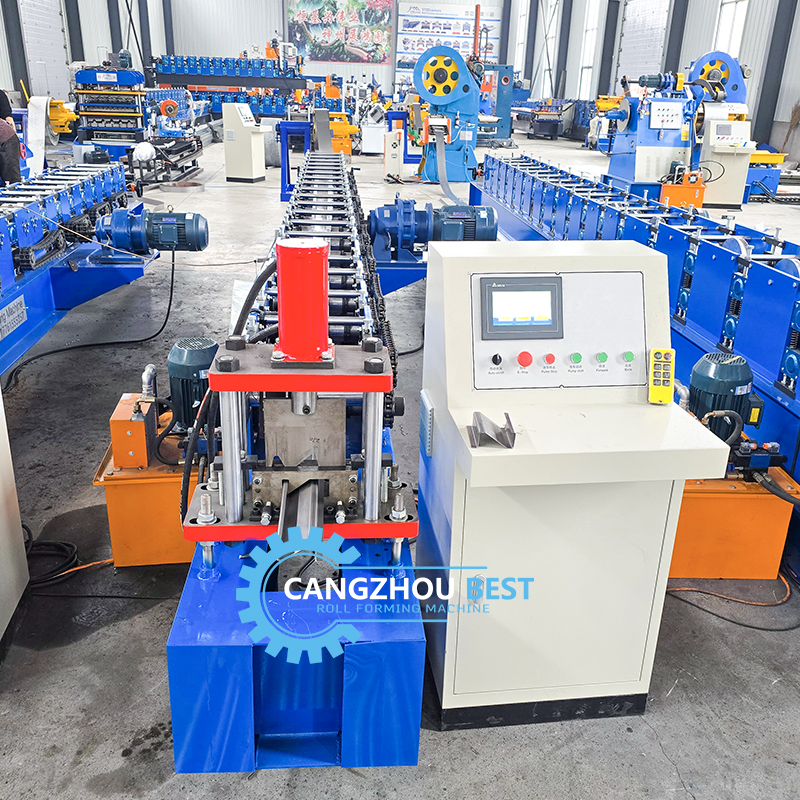

Upright System Customized Z Shape Contact Part Roll Forming Machine Images
|
